input keyevent 24
1|console:/sdcard # cat /proc/asound/cards
console:/sdcard # ls -l /dev/snd/

【需要打開Android13內置的音樂應用才會有聲音出來，原因未知！】
1|console:/sdcard # tinyplay /sdcard/Music/kiss8.wav -D 1 -d 0

20250917在榮品RD-RK3588-MID開發板的Android13系統下使用tinyplay播放wav格式的音頻
2025/9/17 20:37

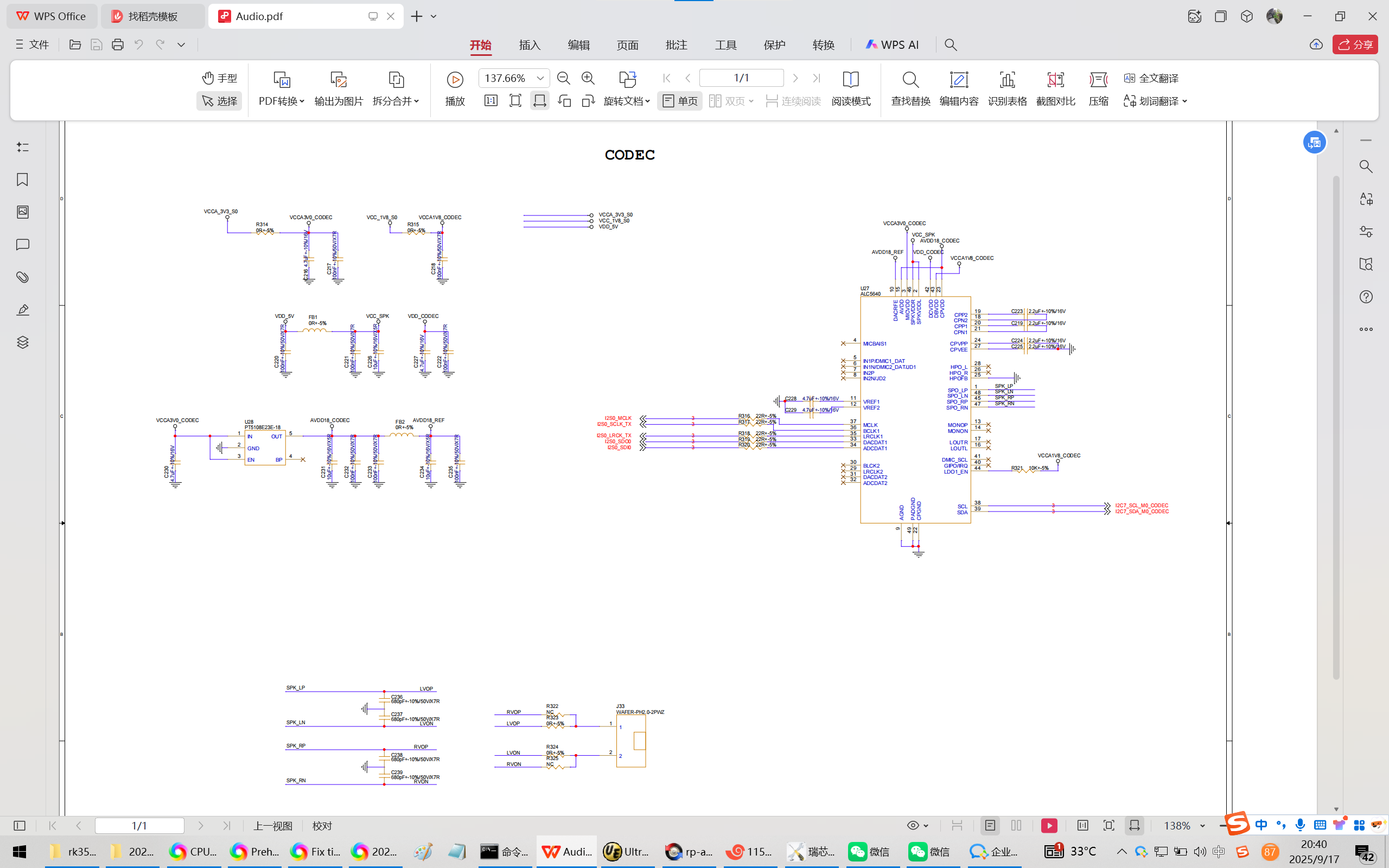

緣起：板子的音頻/喇叭部分是按照榮品RD-RK3588-MID開發板設計的，但是沒有聲音。
排除了靜音了/聲音過小。

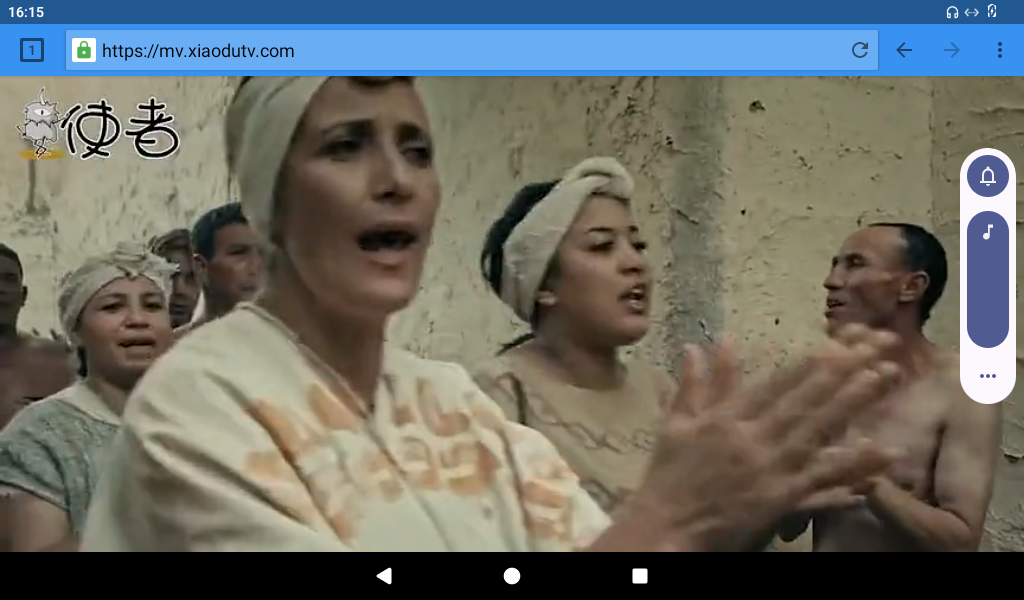

播放網頁視頻/wav音頻都沒有聲音。

后來才定位到是耳機檢測引腳GPIO1C4恒定為低，開機RK3588就認為是耳機模式了！
喇叭肯定沒有聲音了。

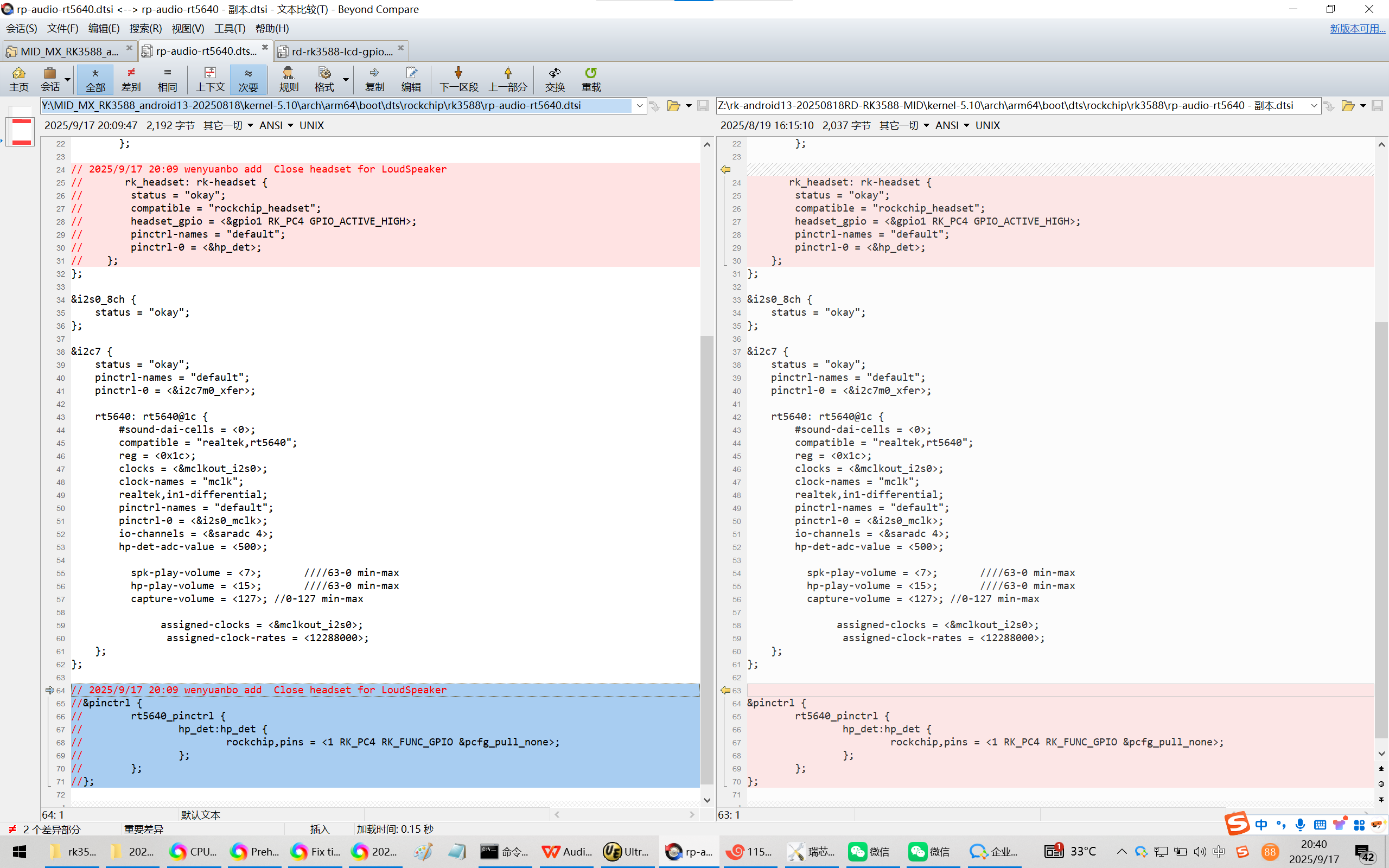

Y:\MID_MX_RK3588_android13-20250818\kernel-5.10\arch\arm64\boot\dts\rockchip\rk3588\rp-audio-rt5640.dtsi

/ {
rt5640-sound {
compatible = "simple-audio-card";
simple-audio-card,format = "i2s";
simple-audio-card,name = "rockchip,rt5640-codec";
simple-audio-card,mclk-fs = <256>;
simple-audio-card,widgets =
"Microphone", "Mic Jack",
"Headphone", "Headphone Jack";
simple-audio-card,routing =
"Mic Jack", "MICBIAS1",
"IN1P", "Mic Jack",
"Headphone Jack", "HPOL",
"Headphone Jack", "HPOR";
simple-audio-card,cpu {
sound-dai = <&i2s0_8ch>;
};
simple-audio-card,codec {
sound-dai = <&rt5640>;
};
};

// 2025/9/17 20:09 wenyuanbo add ?Close headset for LoudSpeaker
// ? ? ? rk_headset: rk-headset {
// ? ? ? ?status = "okay";
// ? ? ? ?compatible = "rockchip_headset";
// ? ? ? ?headset_gpio = <&gpio1 RK_PC4 GPIO_ACTIVE_HIGH>;
// ? ? ? ?pinctrl-names = "default";
// ? ? ? ?pinctrl-0 = <&hp_det>;
// ? ?};
};

&i2s0_8ch {
status = "okay";
};

&i2c7 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&i2c7m0_xfer>;

? ? rt5640: rt5640@1c {
#sound-dai-cells = <0>;
compatible = "realtek,rt5640";
reg = <0x1c>;
clocks = <&mclkout_i2s0>;
clock-names = "mclk";
realtek,in1-differential;
pinctrl-names = "default";
pinctrl-0 = <&i2s0_mclk>;
io-channels = <&saradc 4>;
hp-det-adc-value = <500>;

spk-play-volume = <7>; ? ? ? ////63-0 min-max
hp-play-volume = <15>; ? ? ? ////63-0 min-max
capture-volume = <127>; //0-127 min-max

? ? ? ? ? ? ? ?assigned-clocks = <&mclkout_i2s0>;
assigned-clock-rates = <12288000>;
};
};

// 2025/9/17 20:09 wenyuanbo add ?Close headset for LoudSpeaker
//&pinctrl {
// ? ? ? ?rt5640_pinctrl {
// ? ? ? ? ? ? ? ?hp_det:hp_det {
// ? ? ? ? ? ? ? ? ? ? ? ?rockchip,pins = <1 RK_PC4 RK_FUNC_GPIO &pcfg_pull_none>;
// ? ? ? ? ? ? ? ?};
// ? ? ? ?};
//};

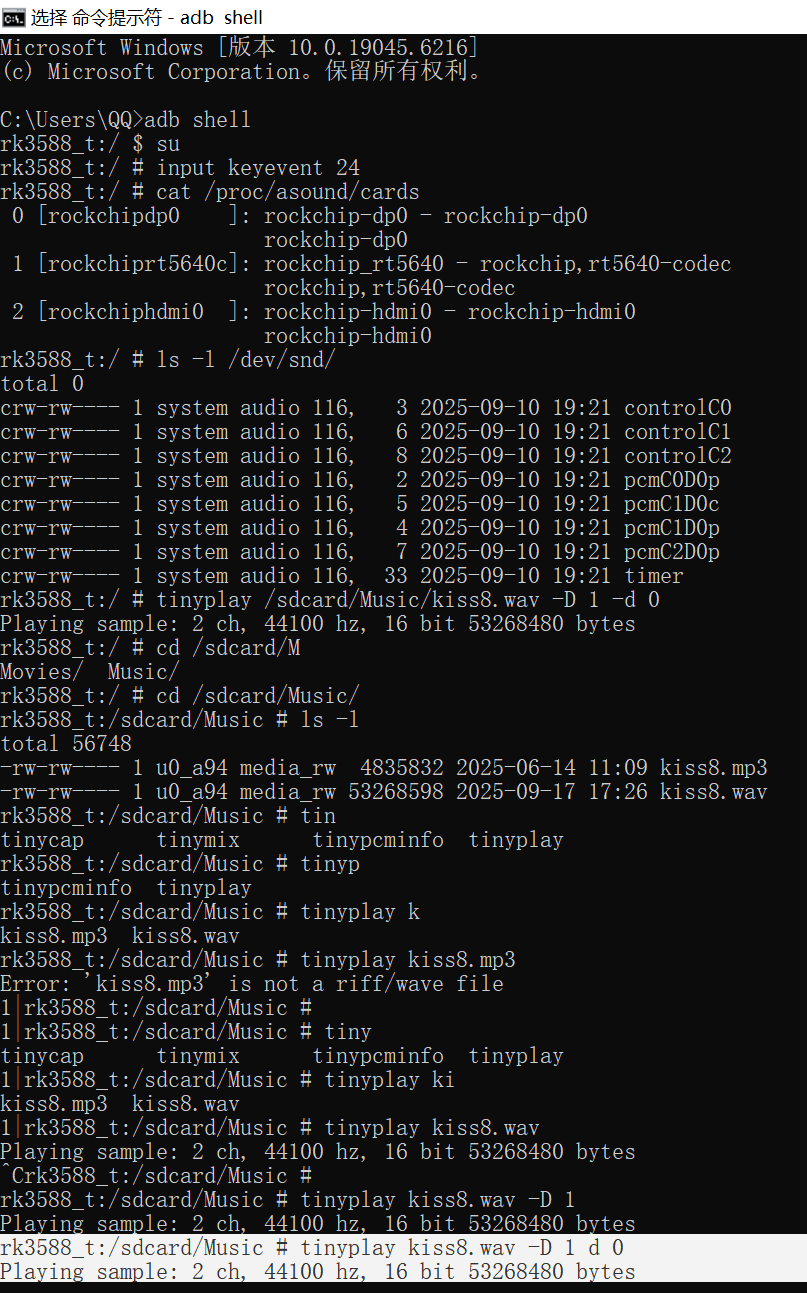

【ADB】播音的LOG：
Microsoft Windows [版本 10.0.19045.6216]
(c) Microsoft Corporation。保留所有權利。

C:\Users\QQ>adb shell
rk3588_t:/ $ su
rk3588_t:/ # input keyevent 24
rk3588_t:/ # cat /proc/asound/cards
0 [rockchipdp0 ? ?]: rockchip-dp0 - rockchip-dp0
rockchip-dp0
1 [rockchiprt5640c]: rockchip_rt5640 - rockchip,rt5640-codec
rockchip,rt5640-codec
2 [rockchiphdmi0 ?]: rockchip-hdmi0 - rockchip-hdmi0
rockchip-hdmi0
rk3588_t:/ # ls -l /dev/snd/
total 0
crw-rw---- 1 system audio 116, ? 3 2025-09-10 19:21 controlC0
crw-rw---- 1 system audio 116, ? 6 2025-09-10 19:21 controlC1
crw-rw---- 1 system audio 116, ? 8 2025-09-10 19:21 controlC2
crw-rw---- 1 system audio 116, ? 2 2025-09-10 19:21 pcmC0D0p
crw-rw---- 1 system audio 116, ? 5 2025-09-10 19:21 pcmC1D0c
crw-rw---- 1 system audio 116, ? 4 2025-09-10 19:21 pcmC1D0p
crw-rw---- 1 system audio 116, ? 7 2025-09-10 19:21 pcmC2D0p
crw-rw---- 1 system audio 116, ?33 2025-09-10 19:21 timer
rk3588_t:/ # tinyplay /sdcard/Music/kiss8.wav -D 1 -d 0
Playing sample: 2 ch, 44100 hz, 16 bit 53268480 bytes
rk3588_t:/ # cd /sdcard/M
Movies/ ?Music/
rk3588_t:/ # cd /sdcard/Music/
rk3588_t:/sdcard/Music # ls -l
total 56748
-rw-rw---- 1 u0_a94 media_rw ?4835832 2025-06-14 11:09 kiss8.mp3
-rw-rw---- 1 u0_a94 media_rw 53268598 2025-09-17 17:26 kiss8.wav
rk3588_t:/sdcard/Music # tin
tinycap ? ? ?tinymix ? ? ?tinypcminfo ?tinyplay
rk3588_t:/sdcard/Music # tinyp
tinypcminfo ?tinyplay
rk3588_t:/sdcard/Music # tinyplay k
kiss8.mp3 ?kiss8.wav
rk3588_t:/sdcard/Music # tinyplay kiss8.mp3
Error: 'kiss8.mp3' is not a riff/wave file
1|rk3588_t:/sdcard/Music #
1|rk3588_t:/sdcard/Music # tiny
tinycap ? ? ?tinymix ? ? ?tinypcminfo ?tinyplay
1|rk3588_t:/sdcard/Music # tinyplay ki
kiss8.mp3 ?kiss8.wav
1|rk3588_t:/sdcard/Music # tinyplay kiss8.wav
Playing sample: 2 ch, 44100 hz, 16 bit 53268480 bytes
^Crk3588_t:/sdcard/Music #
rk3588_t:/sdcard/Music # tinyplay kiss8.wav -D 1
Playing sample: 2 ch, 44100 hz, 16 bit 53268480 bytes
rk3588_t:/sdcard/Music # tinyplay kiss8.wav -D 1 d 0
Playing sample: 2 ch, 44100 hz, 16 bit 53268480 bytes

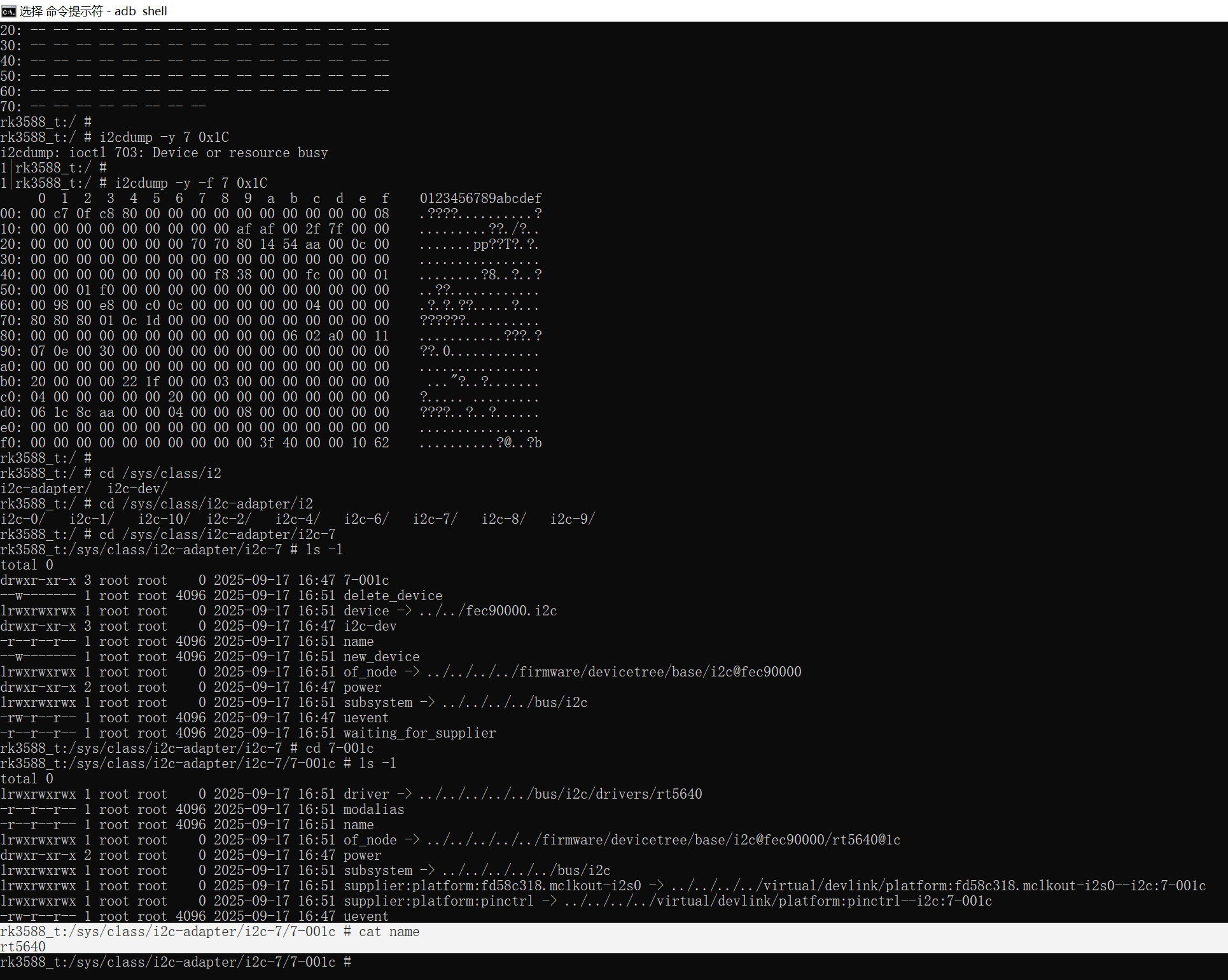

查詢rt5640聲卡的I2C掛載：
rk3588_t:/ # i2cdetect -y 7
0 ?1 ?2 ?3 ?4 ?5 ?6 ?7 ?8 ?9 ?a ?b ?c ?d ?e ?f
00: ? ? ? ? ?-- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- UU -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
rk3588_t:/ #
rk3588_t:/ # i2cdump -y 7 0x1C
i2cdump: ioctl 703: Device or resource busy
1|rk3588_t:/ #
1|rk3588_t:/ # i2cdump -y -f 7 0x1C
0 ?1 ?2 ?3 ?4 ?5 ?6 ?7 ?8 ?9 ?a ?b ?c ?d ?e ?f ? ?0123456789abcdef
00: 00 c7 0f c8 80 00 00 00 00 00 00 00 00 00 00 08 ? ?.????..........?
10: 00 00 00 00 00 00 00 00 00 af af 00 2f 7f 00 00 ? ?.........??./?..
20: 00 00 00 00 00 00 00 70 70 80 14 54 aa 00 0c 00 ? ?.......pp??T?.?.
30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ? ?................
40: 00 00 00 00 00 00 00 00 f8 38 00 00 fc 00 00 01 ? ?........?8..?..?
50: 00 00 01 f0 00 00 00 00 00 00 00 00 00 00 00 00 ? ?..??............
60: 00 98 00 e8 00 c0 0c 00 00 00 00 00 04 00 00 00 ? ?.?.?.??.....?...
70: 80 80 80 01 0c 1d 00 00 00 00 00 00 00 00 00 00 ? ???????..........
80: 00 00 00 00 00 00 00 00 00 00 00 06 02 a0 00 11 ? ?...........???.?
90: 07 0e 00 30 00 00 00 00 00 00 00 00 00 00 00 00 ? ???.0............
a0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ? ?................
b0: 20 00 00 00 22 1f 00 00 03 00 00 00 00 00 00 00 ? ? ..."?..?.......
c0: 04 00 00 00 00 00 20 00 00 00 00 00 00 00 00 00 ? ??..... .........
d0: 06 1c 8c aa 00 00 04 00 00 08 00 00 00 00 00 00 ? ?????..?..?......
e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ? ?................
f0: 00 00 00 00 00 00 00 00 00 00 3f 40 00 00 10 62 ? ?..........?@..?b
rk3588_t:/ #
rk3588_t:/ # cd /sys/class/i2
i2c-adapter/ ?i2c-dev/
rk3588_t:/ # cd /sys/class/i2c-adapter/i2
i2c-0/ ? i2c-1/ ? i2c-10/ ?i2c-2/ ? i2c-4/ ? i2c-6/ ? i2c-7/ ? i2c-8/ ? i2c-9/
rk3588_t:/ # cd /sys/class/i2c-adapter/i2c-7
rk3588_t:/sys/class/i2c-adapter/i2c-7 # ls -l
total 0
drwxr-xr-x 3 root root ? ?0 2025-09-17 16:47 7-001c
--w------- 1 root root 4096 2025-09-17 16:51 delete_device
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 device -> ../../fec90000.i2c
drwxr-xr-x 3 root root ? ?0 2025-09-17 16:47 i2c-dev
-r--r--r-- 1 root root 4096 2025-09-17 16:51 name
--w------- 1 root root 4096 2025-09-17 16:51 new_device
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 of_node -> ../../../../firmware/devicetree/base/i2c@fec90000
drwxr-xr-x 2 root root ? ?0 2025-09-17 16:47 power
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 subsystem -> ../../../../bus/i2c
-rw-r--r-- 1 root root 4096 2025-09-17 16:47 uevent
-r--r--r-- 1 root root 4096 2025-09-17 16:51 waiting_for_supplier
rk3588_t:/sys/class/i2c-adapter/i2c-7 # cd 7-001c
rk3588_t:/sys/class/i2c-adapter/i2c-7/7-001c # ls -l
total 0
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 driver -> ../../../../../bus/i2c/drivers/rt5640
-r--r--r-- 1 root root 4096 2025-09-17 16:51 modalias
-r--r--r-- 1 root root 4096 2025-09-17 16:51 name
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 of_node -> ../../../../../firmware/devicetree/base/i2c@fec90000/rt5640@1c
drwxr-xr-x 2 root root ? ?0 2025-09-17 16:47 power
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 subsystem -> ../../../../../bus/i2c
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 supplier:platform:fd58c318.mclkout-i2s0 -> ../../../../virtual/devlink/platform:fd58c318.mclkout-i2s0--i2c:7-001c
lrwxrwxrwx 1 root root ? ?0 2025-09-17 16:51 supplier:platform:pinctrl -> ../../../../virtual/devlink/platform:pinctrl--i2c:7-001c
-rw-r--r-- 1 root root 4096 2025-09-17 16:47 uevent
rk3588_t:/sys/class/i2c-adapter/i2c-7/7-001c # cat name
rt5640
rk3588_t:/sys/class/i2c-adapter/i2c-7/7-001c #
rk3588_t:/sys/class/i2c-adapter/i2c-7/7-001c # reboot -p
Done
rk3588_t:/sys/class/i2c-adapter/i2c-7/7-001c #
E:\DOCX9\聲音>

參考資料：
由于大家都拿到的常見音頻格式為mp3，但是tinyplay只支持wav格式。
在線免費的mp3轉wav網站：
https://convertio.co/zh/mp3-wav/
https://convertio.co/zh/epub-docx/

1|console:/sdcard # cat /proc/asound/cards
console:/sdcard # ls -l /dev/snd/
1|console:/sdcard # tinyplay kiss8.wav -D 0 -d 0
https://blog.csdn.net/wb4916/article/details/149885045?spm=1011.2415.3001.5331
20250803讓飛凌OK3576-C開發板在Rockchip的原廠Android14下適配聲卡NAU88C22YG【Android部分】

https://blog.csdn.net/wb4916/article/details/135632136?spm=1011.2415.3001.5331
20240116使用Firefly的AIO-3399J的預編譯的Android10固件確認RT5640聲卡信息

百度：rk3588 耳機檢測
input keyvent 音量+

https://blog.csdn.net/u011774634/article/details/137873834?spm=1001.2101.3001.6650.5&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7Ebaidujs_baidulandingword%7ECtr-5-137873834-blog-144431586.235%5Ev43%5Epc_blog_bottom_relevance_base5&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7Ebaidujs_baidulandingword%7ECtr-5-137873834-blog-144431586.235%5Ev43%5Epc_blog_bottom_relevance_base5&utm_relevant_index=10
RK3588 Android12 拔出耳機后一段時間后系統才檢測到耳機拔出的狀態
https://blog.csdn.net/u011774634/article/details/137873834

原因：
耳機檢測引腳HP_DET的上拉電阻阻值過大，因硬件設計耳機未插入時HP_DET為高電平，耳機插入后為低電平。當把耳機拔出后HP_DET由低電平轉為高電平所需的時間較長（幾十秒），所以系統在耳機拔出后一段時間后才檢測到拔出事件。

https://blog.csdn.net/STM32TSZ/article/details/138584992
Linux-筆記 i2c-tools

4. i2cdump
（1）查看i2c設備所有寄存器的值，輸入命令i2cdump -y -f 1 0x51
-y 取消交互過程，直接執行命令
-f 強制訪問該設備
1 表示i2c總線編號
0x51 表示i2c設備地址

https://www.cnblogs.com/MrNull/p/14279118.html
adb shell按鍵操作(input keyevent)

每個數字與keycode對應表如下：

24 --> "KEYCODE_VOLUME_UP"
25 --> "KEYCODE_VOLUME_DOWN"
